IPsec VPN Overview

(1) IPsec VPN Background

• IP protocol was designed in the early stages of the Internet where security wasn’t an issue
• IP protocol is vulnerable to many network attacks and introduce security issues
• IETF introduced IPsec as security extensions for IP protocol
• August 1995, IPsec was officially standardised by IETF in RFC 1825

What is VPN (Virtual Private Network)?

• A technique to securely and privately transmit data over a shared network infrastructure.
• Achieved by encapsulating, encrypting, authenticating the data traffic.

Type of VPN

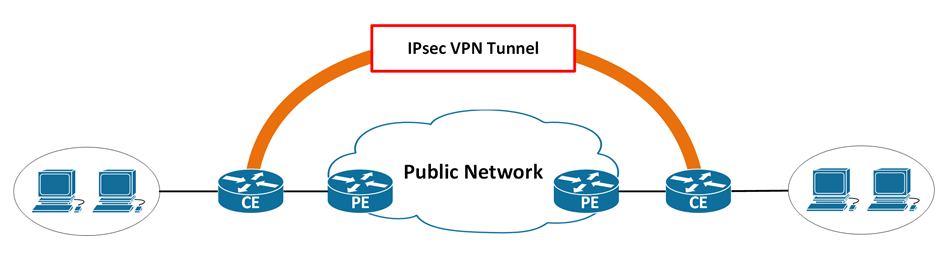

• Site-to-Site VPN
  • Allow network Site-A to has private connection to network Site-B via shared network infrastructure
• Remote Access VPN
  • Allow remote client to has private connection to local office via shared network infrastructure

What is IPsec (IP Security)?

• A suite of protocols and algorithms to secure IP traffic communications.
• Achieved by defining what traffic to protect, how that traffic be protected, to whom the traffic is sent.

Why use IPsec VPN?

• Independent of Service Provider (SP) transport
  • Customer-side provisioning, not SP-side provisioning
  • Only require IPv4/IPv6 reachability as underlay transport
• Allows both site-to-site and remote access VPN
• Offers IPv4/IPv6 packet protection

(2) Key features of IPsec VPN:

• Data origin authentication
  • Crypto peer authentication (PSK, RSA certificate) to ensure peer identity
• Data integrity authentication
  • Data authentication (HMAC functions: MD5, SHA) to prevent MitM/session hijacking attack
• Data content confidentiality
  • Data encryption (DES, 3DES, AES) to prevent eavesdropping attack
• Anti-replay protection
  • Encrypted sequence numbers in data packets to prevent replay attack
• Non-repudiation
  • Ensures that the sender cannot deny sending the data

IPsec typical business applications

Secure Branch-office to Head-office connectivity over the WAN/Internet
Secure remote access connection over the Internet
Secure WAN connection with 3rd party partners

IPsec VPN modes of operation:

Tunnel mode

• Introduce additional outer IP header (new IP address)
  • Can be used as private IP address tunneling
  • More secure because original IP header is hidden
• Typically used in gateway-to-gateway or host-to-gateway VPN scenarios

Transport mode

• Retain the original IP header
  • Less overhead because no additional IP header
• Data plane must be sourced locally from Crypto endpoint itself
• Typically used in host-to-host VPN scenarios
  • DMVPN application

Hi-level IPsec VPN process:

• Interesting traffic trigger the IPsec process
• Phase-1 tunnel setup
  • Dynamic negotiation and secure key exchange using ISAKMP/IKE
  • Used to secure Phase-2 tunnel setup
  • Called IKE SA tunnel
• Phase-2 tunnel setup
  • Dynamic negotiation and secure key exchange using ISAKMP/IKE
  • Used to secure IPsec VPN packets (data plane)
  • Called IPsec SA tunnel
• IPsec VPN packet forwarding and SA tunnel maintenance

(3) Cisco’s IPsec VPN deployment options

• Crypto map based: Legacy framework of IPsec VPN deployment and configuration
  • Static crypto map: Statically configured remote peer and crypto-protected address space
  • Dynamic crypto map: Dynamically allocates remote peers to pre-defined array based on their provided information
• GRE based: GRE IP over IPsec, IPsec VPN with GRE tunnel interface
• VTI: Simplifies IPsec VPN configuration and encapsulation with IPsec tunnel interface
  • SVTI: Statically configured IPsec tunnel interface
  • DVTI: Dynamically created IPsec Virtual-Access tunnel interface from pre-defined Virtual Template (Enhanced EzVPN)
• DMVPN based: mGRE over IPsec, IPsec VPN with DMVPN tunnel interface
• GETVPN: Large scale any-to-any tunnel-less IPsec VPN
• EzVPN: Framework of Cisco IPsec VPN deployment and configuration with IKEv1
• FlexVPN: Framework of Cisco IPsec VPN deployment and configuration with IKEv2
