IPsec VPN Stateless High Availability

IPsec VPN “stateless” failover

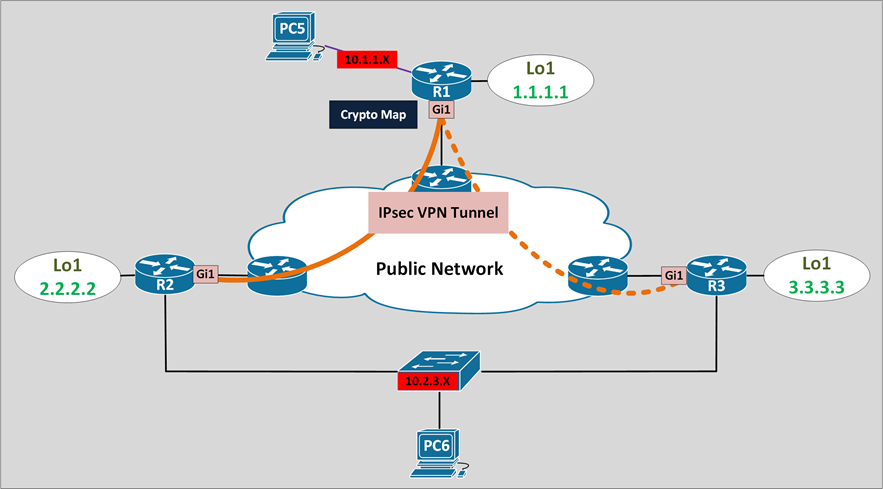

• IPsec VPN uses R1 and R2 tunnel as a primary path

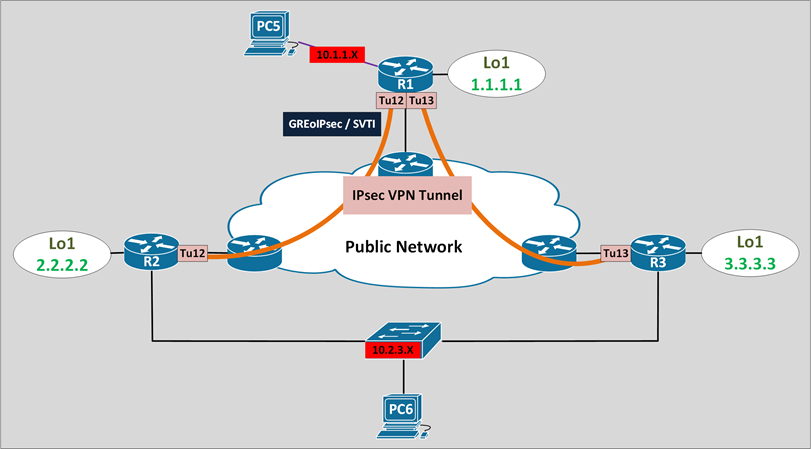

• IPsec VPN uses R1 and R2 tunnel as a backup path
• Only 1 IPsec peer is active at a time, in this case it’s the primary path
• If primary path failed, R1 need to negotiate new SAs with R3 (IKE SA and IPsec SA)
• Stateless means there is no backup copy of primary/existing SAs on the backup path/device

IPsec VPN Crypto Map Based failover scenario

R1 is configured with a redundant peer and pre-shared key, only 1 peer will be UP at a time

• R1(config)#crypto isakmp key CRYPTO_KEY address 2.2.2.2
• R1(config)#crypto isakmp key CRYPTO_KEY address 3.3.3.3
• R1(config)#crypto map MAP1 10 ipsec-isakmp
• R1(config-crypto-map)#set peer 2.2.2.2
• R1(config-crypto-map)#set peer 3.3.3.3

R1 use DPD to detect failure peer and failover between primary peer and backup peer

• R1(config)#crypto isakmp keepalive 10
• R2(config)#crypto isakmp keepalive 10
• R3(config)#crypto isakmp keepalive 10

R2 and R3 need to do RRI to signal the routing protocol which router is the active peer

• Consider the “Switch” act as a gateway for PC6, and act as an IGP peer for R2 and R3
• R2(config-crypto-map)#reverse-route remote-peer 1.1.1.1 gateway
• R3(config-crypto-map)#reverse-route remote-peer 1.1.1.1 gateway
