IPsec VPN With DMVPN Overview

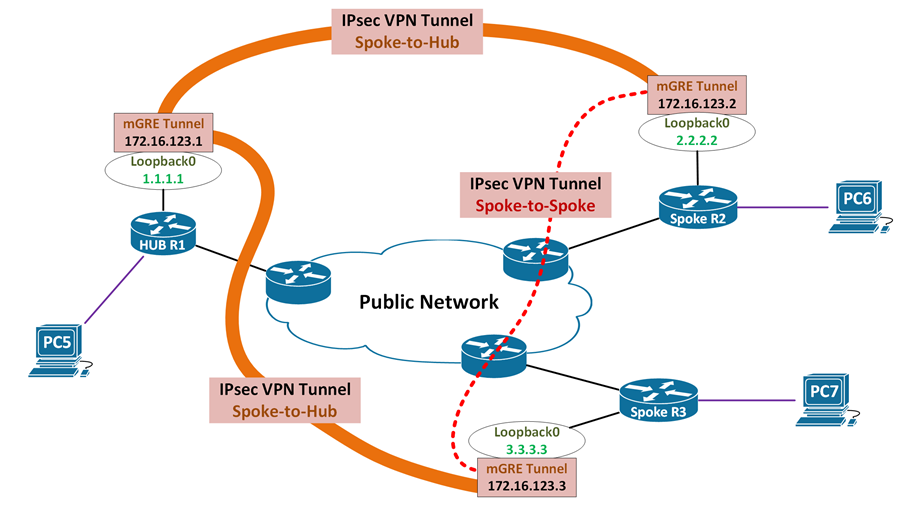

IPsec VPN with DMVPN overview

• IPsec integrated with DMVPN, but not a must
  • Configured as crypto ipsec profile on Tunnel interface (mGRE)
  • Dynamic spoke-to-spoke tunnels is supported
• The order of operation
  • Underlay routing
  • Packets encapsulated in GRE, then encrypted with IPsec
  • NHRP controls the the tunnels
  • Overlay routing
• Bringing up a tunnel
  • NHRP signals IPsec to setup encryption
  • IKE/ISAKMP phase 1 & phase 2 negotiation
  • IPsec responds to NHRP and the tunnel is activated
  • All NHRP and data traffic is encrypted
• Bringing down a tunnel
  • NHRP signals IPsec to tear down tunnel
  • If encryption is cleared or lost, IPsec can signal NHRP to clear the tunnel
• Spoke to hub tunnels are always nailed up (All DMVPN phases)
  • Hub always has IPsec SA for all spokes
• Spoke to spoke tunnels are on demand (DMVPN phase 2 and 3)

Redundancy consideration

• IPsec stateful failover isn’t supported
• Invalid SPI recovery is not useful with DMVPN
  • #no crypto isakmp invalid-spi-recovery
• Sharing the IPsec SADB between tunnels
  • When using same IPsec profile and tunnel source (must use the interface name)
  • If IPsec SA sessions aren’t shared within same SADB, the SA may get associated with wrong SADB with wrong interface. (Duplicates SAs and tunnel flapping)
  • #tunnel protection ipsec profile VPNPROF1 shared
• Crypto peers monitoring
  • ISAKMP keepalives on spokes (DPD) for underlay ISAKMP monitoring
  • BFD over DMVPN for fast overlay tunnel monitoring (IOS XE 16.3.1 or later)

Crypto best practice

• BFD over DMVPN for quick spoke-hub and spoke-spoke tunnel recovery
• IKE/ISAKMP keepalives on spokes only
  • #crypto isakmp keepalive 30 5 [on-demand | periodic]
  • #crypto isakmp nat keepalive 30
• CPU/Memory on hubs only
  • #crypto call admission limit ike <sa | in-negotiation> <max-SAs>
  • #crypto ikev2 limit max-in-negotiation-sa <max-SAs> <inbound | outbound>
  • #show crypto call admission statistics

Scaling IPsec over DMVPN

• As DMVPN cloud grows, IPsec state grows
  • Linier IPsec SA state from hub to spokes, spoke-to-spoke scale is on-demand
• Scaling ISAKMP authentication
  • PSK is supported but hard to manage
  • Wildcard PSKs are a bad idea
  • PKI is the preferred solution
• Scaling IPsec SAs
  • DMVPN over GETVPN
