IPsec VPN With GRE
The Overview
- IPsec using crypto maps have no interface in routing table
- Dynamic IGP routing isn’t supported
- Multihop BGP is overcomplicates the design
- Static routing is hard to scale
- Simple solution is to use GRE tunnel interface
- Run routing inside GRE tunnel
- Apply IPsec SA to GRE traffic
- IPsec with GRE is multiprotocol encapsulation
- IPv4, IPv6, IS-IS, etc
Correct design of IPsec with GRE
- IPsec over GRE (bad design)
- GRE is the underlay transport
- Apply IPsec SA to user traffic
- Route the IPsec traffic via GRE tunnel
- Crypto map attached to physical interface
- GRE over IPsec
- IPsec is the underlay transport
- Route the user traffic via GRE tunnel
- Apply IPsec SA to GRE traffic
- Crypto map attached to tunnel interface

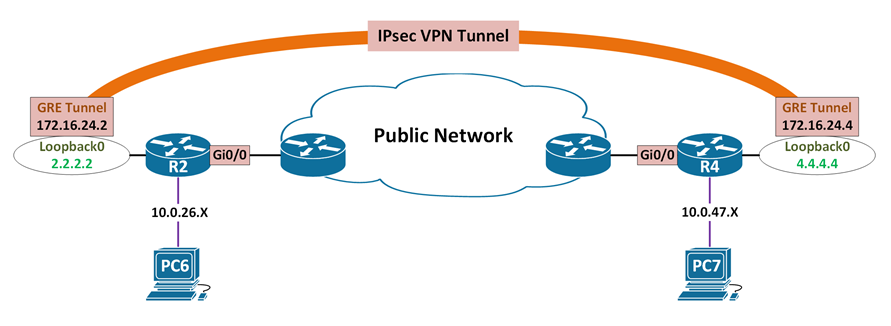

GRE over IPsec “Transport Mode” with Crypto Map example
| !! R2 !! | !! R4 !! |
|
! Routing ip route 0.0.0.0 0.0.0.0 GigabitEthernet0/0 10.0.12.1 ip route 10.0.47.0 255.255.255.0 Tunnel24 172.16.24.4
! Tunnel Interface interface Tunnel24 ip address 172.16.24.2 255.255.255.0 tunnel source 2.2.2.2 tunnel destination 4.4.4.4 tunnel mode gre ip
! Crypto endpoint authentication crypto isakmp key ISAKMP_SECRET address 4.4.4.4
! Proxy ACL ip access-list extended GRE2_TO_4 permit gre host 2.2.2.2 host 4.4.4.4
! ISAKMP/IKE Phase 1 security parameters crypto isakmp policy 10 encryption des hash md5 authentication pre-share group 2
! ISAKMP/IKE Phase 2 security parameters crypto ipsec transform-set XF esp-des esp-md5-hmac mode transport
! Crypto map parameters crypto map MAP1 10 ipsec-isakmp set peer 4.4.4.4 set transform-set XF set pfs group2 match address GRE2_TO_4
! Crypto map source address crypto map MAP1 local-address Loopback0
! Apply crypto map interface GigabitEthernet0/0 crypto map MAP1
|
! Routing ip route 0.0.0.0 0.0.0.0 GigabitEthernet0/0 10.0.34.3 ip route 10.0.26.0 255.255.255.0 Tunnel24 172.16.24.2
! Tunnel Interface interface Tunnel24 ip address 172.16.24.4 255.255.255.0 tunnel source 4.4.4.4 tunnel destination 2.2.2.2 tunnel mode gre ip
! Crypto endpoint authentication crypto isakmp key ISAKMP_SECRET address 2.2.2.2
! Proxy ACL ip access-list extended GRE4_TO_2 permit gre host 4.4.4.4 host 2.2.2.2
! ISAKMP/IKE Phase 1 security parameters crypto isakmp policy 10 encryption des hash md5 authentication pre-share group 2
! ISAKMP/IKE Phase 2 security parameters crypto ipsec transform-set XF esp-des esp-md5-hmac mode transport
! Crypto map parameters crypto map MAP1 10 ipsec-isakmp set peer 2.2.2.2 set transform-set XF set pfs group2 match address GRE4_TO_2
! Crypto map source address crypto map MAP1 local-address Loopback0
! Apply crypto map interface GigabitEthernet0/0 crypto map MAP1
|
Verification
|
! Reset security association clear crypto sa clear crypto isakmp
! ISAKMP SA R2#show crypto isakmp sa
dst src state conn-id status 4.4.4.4 2.2.2.2 QM_IDLE 1001 ACTIVE
! IPsec SA R2#show crypto ipsec sa
interface: GigabitEthernet0/0 Crypto map tag: MAP1, local addr 2.2.2.2 local ident (addr/mask/prot/port): (2.2.2.2/255.255.255.255/47/0) remote ident (addr/mask/prot/port): (4.4.4.4/255.255.255.255/47/0) current_peer 4.4.4.4 port 500 #pkts encaps: 4, #pkts encrypt: 4, #pkts digest: 4 #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
local crypto endpt.: 2.2.2.2, remote crypto endpt.: 4.4.4.4 plaintext mtu 1466, path mtu 1500, ip mtu 1500, ip mtu idb GigabitEthernet0/0 PFS (Y/N): Y, DH group: group2
inbound esp sas: spi: 0x3F40F8CD(1061222605) in use settings ={Transport, } Status: ACTIVE(ACTIVE)
outbound esp sas: spi: 0x51508289(1364230793) in use settings ={Transport, } Status: ACTIVE(ACTIVE)
! Crypto Engine Connections R2#show crypto engine connection active
ID Type Algorithm Encrypt Decrypt LastSeqN IP-Address 5 IPsec DES+MD5 0 4 4 2.2.2.2 6 IPsec DES+MD5 4 0 0 2.2.2.2 1001 IKE MD5+DES 0 0 0 2.2.2.2 |
! Reset security association clear crypto sa clear crypto isakmp
! ISAKMP SA R4#show crypto isakmp sa
dst src state conn-id status 4.4.4.4 2.2.2.2 QM_IDLE 1001 ACTIVE
! IPsec SA R4#show crypto ipsec sa
interface: GigabitEthernet0/0 Crypto map tag: MAP1, local addr 4.4.4.4 local ident (addr/mask/prot/port): (4.4.4.4/255.255.255.255/47/0) remote ident (addr/mask/prot/port): (2.2.2.2/255.255.255.255/47/0) current_peer 2.2.2.2 port 500 #pkts encaps: 4, #pkts encrypt: 4, #pkts digest: 4 #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
local crypto endpt.: 4.4.4.4, remote crypto endpt.: 2.2.2.2 plaintext mtu 1466, path mtu 1500, ip mtu 1500, ip mtu idb GigabitEthernet0/0 PFS (Y/N): Y, DH group: group2
inbound esp sas: spi: 0x51508289(1364230793) in use settings ={Transport, } Status: ACTIVE(ACTIVE)
outbound esp sas: spi: 0x3F40F8CD(1061222605) in use settings ={Transport, } Status: ACTIVE(ACTIVE)
! Crypto Engine Connections R4#show crypto engine connection active
ID Type Algorithm Encrypt Decrypt LastSeqN IP-Address 5 IPsec DES+MD5 0 4 4 4.4.4.4 6 IPsec DES+MD5 4 0 0 4.4.4.4 1001 IKE MD5+DES 0 0 0 4.4.4.4 |
