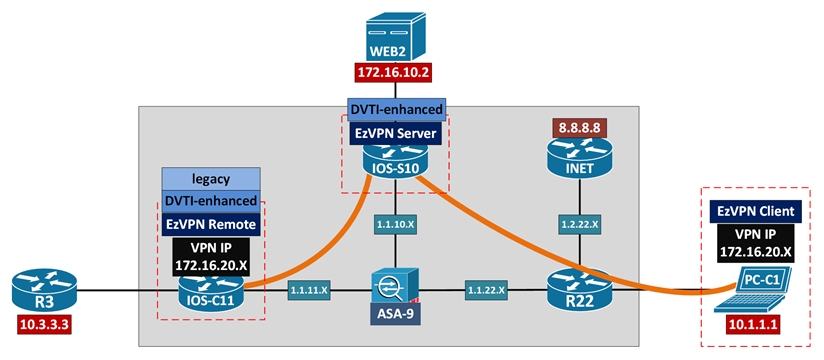

IPsec VPN With DVTI-EEzVPN Routing

! Routing via auto-RRI

S        172.16.20.105/32 is directly connected, Virtual-Access1

S        172.16.20.106/32 [1/0], Virtual-Access2

S        172.16.20.107/32 [1/0], Virtual-Access2

! IPsec VPN session

IOS-S10 #show crypto session detail

//to Cisco VPN Client

Interface: Virtual-Access1

Username: user1

Profile: ISAKMP_PROF_G2

Group: EZVPN_GROUP2

Assigned address: 172.16.20.105

Uptime: 00:01:35

Session status: UP-ACTIVE

Peer: 1.1.22.22 port 63141 fvrf: (none) ivrf: (none)

Phase1_id: EZVPN_GROUP2

Desc: (none)

Session ID: 0

IKEv1 SA: local 1.1.10.10/4500 remote 1.1.22.22/63141 Active

Capabilities:CXN connid:1006 lifetime:23:58:23

IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 host 172.16.20.105

Active SAs: 2, origin: crypto map

Inbound:  #pkts dec’ed 11 drop 0 life (KB/Sec) 4362967/3504

Outbound: #pkts enc’ed 11 drop 0 life (KB/Sec) 4362967/3504

//to legacy EzVPN Remote

Interface: Virtual-Access2

Username: user1

Profile: ISAKMP_PROF_G1

Group: EZVPN_GROUP1

Assigned address: 172.16.20.106

Uptime: 00:01:04

Session status: UP-ACTIVE

Peer: 1.1.11.11 port 500 fvrf: (none) ivrf: (none)

Phase1_id: EZVPN_GROUP1

Desc: (none)

Session ID: 0

IKEv1 SA: local 1.1.10.10/500 remote 1.1.11.11/500 Active

Capabilities:CX connid:1007 lifetime:23:58:55

IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 host 172.16.20.106

Active SAs: 2, origin: crypto map

Inbound:  #pkts dec’ed 5 drop 0 life (KB/Sec) 4179192/3535

Outbound: #pkts enc’ed 5 drop 0 life (KB/Sec) 4179192/3535

//to enhanced EzVPN Remote

Interface: Virtual-Access2

Username: user1

Profile: ISAKMP_PROF_G1

Group: EZVPN_GROUP1

Assigned address: 172.16.20.107

Uptime: 00:04:30

Session status: UP-ACTIVE

Peer: 1.1.11.11 port 500 fvrf: (none) ivrf: (none)

Phase1_id: EZVPN_GROUP1

Desc: (none)

Session ID: 0

IKEv1 SA: local 1.1.10.10/500 remote 1.1.11.11/500 Active

Capabilities:CX connid:1008 lifetime:23:55:29

IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 0.0.0.0/0.0.0.0

Active SAs: 2, origin: crypto map

Inbound:  #pkts dec’ed 5 drop 0 life (KB/Sec) 4179192/3329

Outbound: #pkts enc’ed 5 drop 0 life (KB/Sec) 4179192/3329

!! Cisco VPN Client

! Outgoing routing (PC-C1-to-WEB2)

s=172.16.20.105, d=172.16.10.2

• 172.16.10.0/24 172.16.0.1
• Outgoing interface: Cisco_VPN_Adapter_172.16.20.105
• ARP: 172.16.0.1 aabb.cc00.7010

//Go to IPsec VPN encapsulation process

s=10.1.1.1, d=1.1.10.10

• 1.1.10.10/32 10.1.1.22
• Outgoing interface: LAN_Adapter_10.1.1.1
• ARP: 10.1.1.22 aabb.cc00.7010

!! Enhanced EzVPN Remote

Routing via auto-RRI (split tunneling)

S        172.16.10.0/24 [1/0], Virtual-Access1

//Don’t use manual static route

IOS-C11(config)#no ip route 172.16.10.0 255.255.255.0 Ethernet0/0 1.1.11.9

! Outgoing routing (R3-to-WEB2)

IOS-C11#

s=10.3.3.3 (Ethernet0/1), d=172.16.10.2, MCI Check

s=172.16.20.108 (Ethernet0/1), d=172.16.10.2 (Virtual-Access1)

• Post-routing NAT Outside(26)
• NAT ALG proxy(63)
• g=172.16.10.2, forward
• post-encap feature, IPSEC Post-encap output classification(16)
• sending full packet

s=1.1.11.11 (local), d=1.1.10.10 (Ethernet0/0)

• Post-routing NAT Outside(26)
• NAT ALG proxy(63)
• g=1.1.11.9, forward
• sending full packet
• ARP: 1.1.11.9 5000.0004.0003

! Incoming routing (WEB2-to-R3)

IOS-C11#

s=1.1.10.10 (Ethernet0/0), d=1.1.11.11

• NAT Outside(91)
• MCI Check

s=1.1.10.10 (Ethernet0/0), d=1.1.11.11 (Ethernet0/0)

• Post-routing NAT Outside(26)
• Rcvd
• stop process pak for forus packet

s=172.16.10.2 (Virtual-Access1), d=10.3.3.3

• NAT Outside(91)
• MCI Check(108)

s=172.16.10.2 (Virtual-Access1), d=10.3.3.3 (Ethernet0/1)

• NAT Inside(8)
• NAT ALG proxy(63)
• g=10.3.3.3, forward
• sending full packet
• ARP: 10.3.3.3 aabb.cc00.5000
